ATEX Dry Battery Series

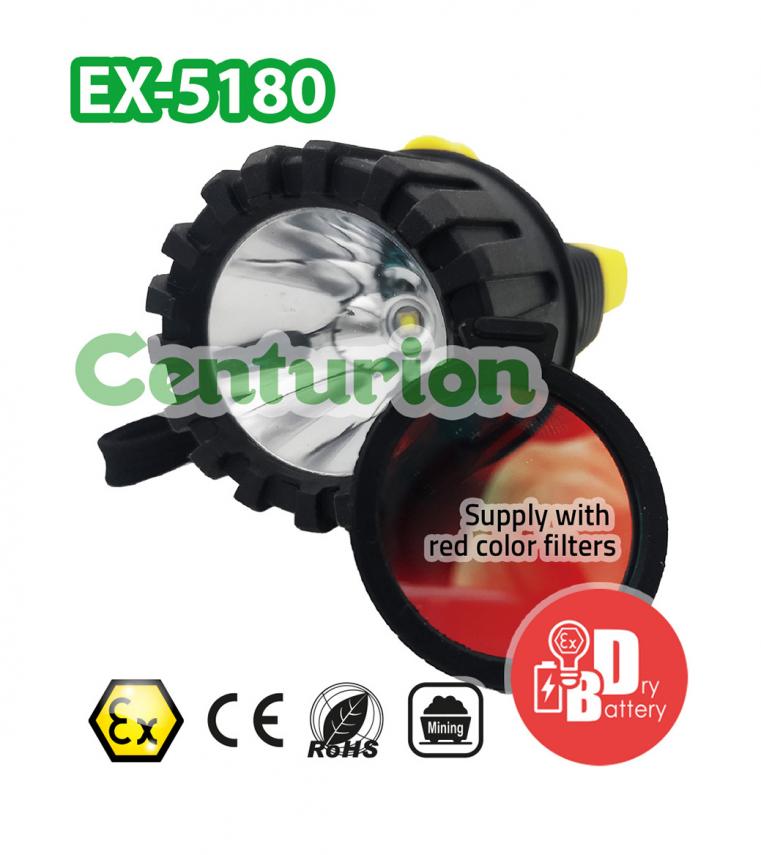

his Intrinsically Safe 4AA LED Flashlight, EX-5180, is ATEX Directive certified for safe use in Zones 0, 1, and 2 explosive gas atmospheres and Zones 20, 21, and 22 potentially explosive dust atmospheres. It is suitable for marine, gas, and oil industries.

This high-strength torch is extremely robust and reliable, with proven shock protection, rubber-armored lens ring, scratch, and chemical attack resistance lens, all sealed dust-tight and protected from water immersion, with an IP68 enclosure. The compact flashlight has a magnetic control switch with a single hand for easier operation, high/low output modes, and a supply of red color filters to meet the needs of multiple users.

Its unique optics deliver a piercing white spot beam combined with a high-power 'fitted for life' LED, giving a peak of up to 176 lumens of light output. Four AA/LR06 primary alkaline cells provide a light duration of up to 8.75 hours.

This product is also RoHS and CE certified.

• Type of Protection: 'ia' Intrinsically Safe
• Areas of Classification (Gases): Zone 0, 1 and 2. Gas Groups: IIA, IIB, and IIC
• Areas of Classification (Dusts): Zone 20, 21 and 22. Dust Groups: IIIA, IIIB, and IIIC
• Temperature Classification (Gases / Dust): T4 / 135°C
• Ambient Temperature: -20°C~+40°C
• Beam Type: Spot
• Beam Distance: Up to 189 Meters
• Output Mode: High / Low
• Output:
  • Source Lumens: High -209 lm, Low - 54 lm.
  • Effective Lumens: High - 176 lm, Low - 46 lm.
• Light Duration:
  • High - 8.75 Hrs.
  • Low - 20.4 Hrs.
• Light Source Type: High-efficiency LED
• Power: 6V 3W
• Power Source: 4 X AA (LR6) Alkaline Cells
• Ingress Protection: IP68
• Impact Resistance: 2 Meters
• Product Net Weight: 150g (without batteries)
• Dimension:  Φ51*173mm
• Packing: 50 pieces per carton, size: 43*34*26cm
•
